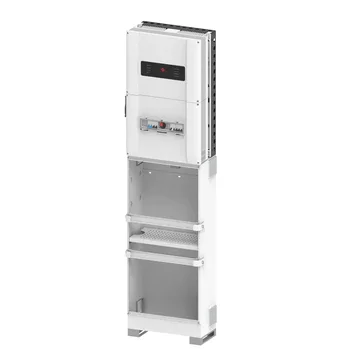

Dimensions: Width 535mm, Depth 280mm, Height 1155mm (without the feet installed) and Height 1205mm (with the feet installed).
Based on 0 reviews
Be the first to review “GoodWe Battery Enclosure for SECU 5.4”
Related products
-
Inverters
50KW Deye 3 Phase Hybrid Inverter High Voltage + FREE Wifi Dongle
Commercial-grade 50kW three-phase hybrid inverter (SUN-50K-SG01HP3-EU-BM4) for HV batteries (160–800V). 4 MPPT (2 strings each), 1,000Vdc PV, max PV access 100kW, 97.6% max efficiency, IP65, unbalanced output, parallel up to 10. FREE Wi-Fi dongle included. Collection in 3 hours (SA); same-day nationwide dispatch.
SKU: n/a -
Inverters
16Kw Deye Single Phase Hybrid Inverter + FREE WIfi Dongle
Features:
- A high-resolution LCD screen gives you all the information you need about your inverter.
- IP65 protection degree.
- DC couple and AC couple to retrofit existing solar system.
- You can connect up to 16 Deye Inverters in parallel, making it possible to have AC output of up to 256kW with one input PV array!; Support multiple batteries parallel.
- Max. charging/discharging current of 290A.
- 6 time periods for battery charging/discharging.
- Support storing energy from a diesel generator.
- LCD Touch display and buttons, simple solar system for residential use.
- Monitoring is possible via a web browser or mobile app, so you can see how your solar system is performing at any time.
- The Deye inverter is a hybrid inverter that uses lithium-ion and lead-acid batteries.
- It comes with a warranty of 5 years.
Technical Data.
- Model: SUN-16K-SG01LP1-EU
- Battery Type: Lead-acid or Li-lon.
- Battery Voltage Range: 40-60V.
- Max. Charging Current: 290A.
- Max. Discharging Current: 290A.
- UPS Power: 16000W.
- External Temperature Sensor: Yes.
- Charging Curve: 3 Stages / Equalization.
- Charging Strategy for Li-Ion Battery: Self-adaption to BMS.
PV String Input Data.
- Max. DC Input Power: 20800W.
- Max. DC Input Voltage: 500V.
- Start-up Voltage: 50V.
- MPPT Range: 150-425V.
- Rated DC Input Voltage: 370V.
- PV Input Current: 26A+26A+26A.
- Max. PV ISC: 44A+44A+44A.
- Number of MPPT / Strings per MPPT: 3/2.
General Data.
- Operating Temperature Range: -45~60º C, >45º C derating.
- Cooling: Smart cooling.
- Noise: <30 dB.
- Communication with BMS: RS485; CAN.
- Weight: 51.5kg.
- Size: 464W×798.4H×300Dmm.
- Protection Degree: IP65.
- Installation Style: Wall-mounted.
- Warranty: 5 years.
- Max. Number of Parallel (PCS): 16.
Efficiency.
- Max. Efficiency: 97.60%.
- Euro Efficiency: 96.50%.
- MPPT Efficiency: 99.90%.
SKU: n/a
