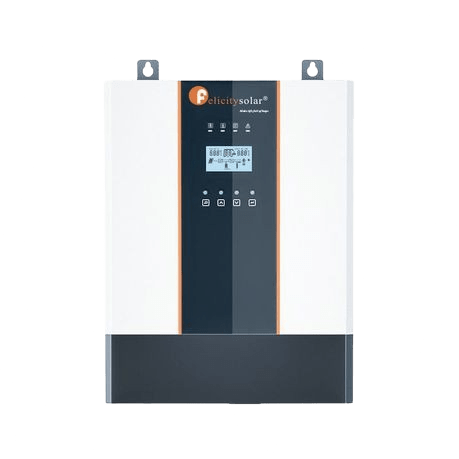

7.5kw Felicity Hybrid Inverter

What’s included

• 1 × 7.5kVA 48V Felicity hybrid inverter (IVPM/IVPS 7548 series) with 120A MPPT

• User/installation documentation
  (Mounting hardware/communications dongles vary by batch; see packing list.) Solar Shop Africa

Key features

• Hybrid inverter/charger: inverter + solar charger + AC charger in one unit; pure sine wave output protects sensitive loads. phozenergy.ng

• Built-in 120A MPPT for high solar charge current on 48V banks. Solar Shop Africa

• Wide AC input 90–280Vac (50/60Hz) for grid or generator; supports auto-start of generator. nesscomsolar.com

• Configurable charging & source priority (solar / utility / battery). nesscomsolar.com

• RS232 interface for local monitoring/automation (compatible with Solar-Assistant). Solar Assistant

Technical specs (summary)

• Rated output: 7.5kVA / 6kW, single-phase 220–230Vac, 50/60Hz. Solar Store

• Battery system: 48V (lithium with wake-up support, AGM/lead-acid via settings). TMK ENERGIES

• Solar charger (MPPT): 120A, working PV range ≈60–195Vdc, Max PV Voc ≈195Vdc, Max PV input ≈6.6kW (design strings to stay within limits at coldest temp). Alibaba

• AC charger: adjustable; wide 90–280Vac input window. nesscomsolar.com

• Efficiency (line/bypass): up to ≥95%; active protections (over-temp/over-voltage/over-load/short-circuit). Alibaba+1

Compatibility

• Batteries: 48V lithium (BMS wake-up supported) or lead-acid/AGM (set absorb/float per spec). TMK ENERGIES

• PV strings: keep within 60–195Vdc MPPT and ≤195Vdc Voc at site minimum temperature; size array up to ~6.6kW. Alibaba

• Monitoring: RS232 for local logging/automation; Wi-Fi/LAN dongles sold separately. Solar Assistant

Not included (plan for these)

• External DC/AC isolators, DC fuses/breakers, PV connectors, cabling/lugs/trunking/labels

• Wi-Fi/LAN monitoring dongle (optional)

• Installation/commissioning, COC/SSEG paperwork

Installation & compliance (South Africa)

• Installed by a qualified electrician/installer to SANS 10142-1 and manufacturer guidelines.

• Confirm PV string Voc at minimum ambient; set battery chemistry and charge currents; test changeover and protections.

Logistics (SA)

• Collection: ready 3 hours after payment (business hours).

• Delivery: same-day dispatch nationwide with same-day shipping note.
