Key Features
- Four Class 2 stranded copper conductors, each 16 mm² cross‑section
- TI4 PVC insulation, flame‑retardant and self‑extinguishing
- White PVC outer sheath, UV‑stable and moisture‑resistant
- Rated 0.6/1 000 V nominal, 3.5 kV AC test voltage
- Continuous operating temperature –20 °C to +70 °C
- Colour‑coded cores: Brown, Black, Grey, Blue
Benefits
- Smooth Installation
Fine stranding allows easy pulling through conduits and around bends. - Clean Appearance
White sheath blends with interior décor and surface trunking. - Long‑Term Durability
PVC construction resists oils, chemicals and moisture for extended service life. - Safety‑Assured
Flame‑retardant insulation minimizes fire risk under fault conditions.
Technical Specifications
| Specification | Details |
|---|---|
| Conductor Material | Plain annealed copper (99.9 % Cu) |
| Conductor Stranding | 7 × 1.62 mm strands |
| Conductor Cross‑Section | 16 mm² × 4 cores |
| Insulation | TI4 PVC |
| Outer Sheath | White PVC |
| Nominal Voltage | 0.6/1 000 V |
| Test Voltage | 3.5 kV AC |
| Temperature Rating | –20 °C to +70 °C |
| Current Capacity (Free Air) | 57 A |
| Current Capacity (Clipped Direct) | 53 A |
| Approximate Weight | ~1.2 kg/m |
| Overall Diameter | ~20 mm |
Typical Applications
- Sub‑mains and branch circuits in homes and offices
- Fixed wiring for lighting and small motor loads
- Internal wiring of distribution boards and control panels
- Surface trunking where aesthetics matter
Installation Tips
- Cutting & Stripping
Use a sharp cable cutter and a calibrated stripper set to avoid conductor damage. - Routing
Apply cable lubricant when pulling through long or tight conduit runs. - Termination
Crimp suitable lugs onto each core; torque connections to manufacturer’s specification. - Securing
Support every 300 mm horizontally and 500 mm vertically with appropriate clips or trunking. - Testing
Verify insulation resistance and continuity before energising the circuit.
Packaging & Ordering
- Sold by the metre; specify exact length when ordering

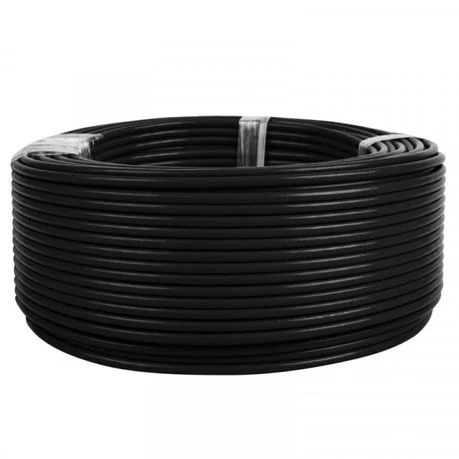

- Available in 100 m coils for bulk requirements
- Typical lead time: 3–5 business days
