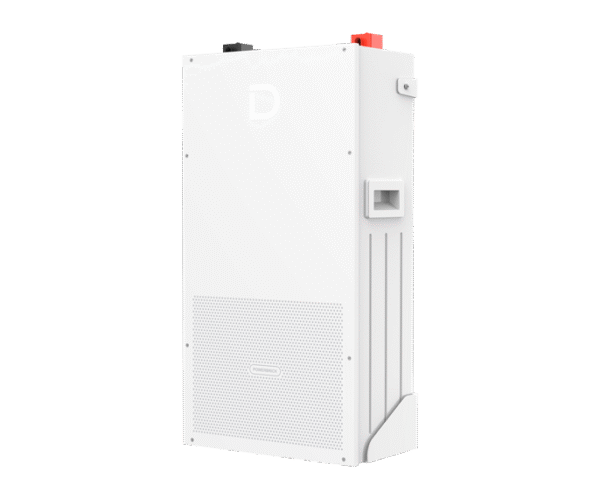

Dyness 14.3KW Lithium Battery Power Brick
The Dyness PowerBrick 14.3kWh Lithium Battery is a high-performance energy storage solution designed for residential applications. It utilizes advanced LiFePO4 technology, ensuring maximum safety and longevity with an unlimited cycle life warranty over 10 years. Experience the Dyness Power Brick difference. Order your Dyness 14.3kW system now!
Dyness 14.3KW Lithium Battery Features
- Continuous discharge current 200A, maximum continuous discharge power 10kW.
- Unlimited Cycles / 10Years.
- Maximum can be expanded to 716.8kWh（no HUB).
- WIFI Module.
- Power Supply Systems, Solar Energy Storage Systems.
PowerBrick
PowerBrick is a low-voltage product designed for household energy storage scenarios, with a stylish and elegant appearance. Its 60% volume reduction, 25% weight reduction, and bottom pulley design save time and labor for installation. Featuring 280Ah long-cycle battery cores, it supports a maximum of 50 parallel units, and 14.3kWh~716.8kWh energy coverage, providing a safe, reliable, intelligent, and friendly experience.
| Battery Type | LiFePO4 |
| Nominal Battery Energy | 14.336kWh |
| Nominal Voltage/Capacity | 51.2V/280Ah |
| Recommended Charge/Discharge Current | 140A (0.5C) |
| Max. Charge Current | 200A |
| Max. Discharge Current | 200A |
| Depth of Discharge | 95% |
| Communication | CAN/RS485 |
| Cycle Life | Unlimited cycles / 10 Years |
| Protection Level | IP20 |
| Net Weight | 114Kg |
| Dimension[W*D*H] | 435*233*857mm (No wall -mounted bracket) |
| Maximum Parallel Modules | 50 |
| Charging Temp. Range | 0~55°C |
| Discharging Temp. Range | -20~55°C |
| WIFI Module | Built-in WIFI module; APP OTA function |
| Fire Protection System | Optional Aerosol fire extinguisher |
| Certification & Safety Standard | UN38.3/CE-EMC/IEC62619 |
| Compatible Inverters | SMA/Schneider/Victron energy/Ingeteam/Solis/GoodWe/Growatt/Soplanet/SOFAR/SAJ/DEYE etc. |
10 Years Warranty
