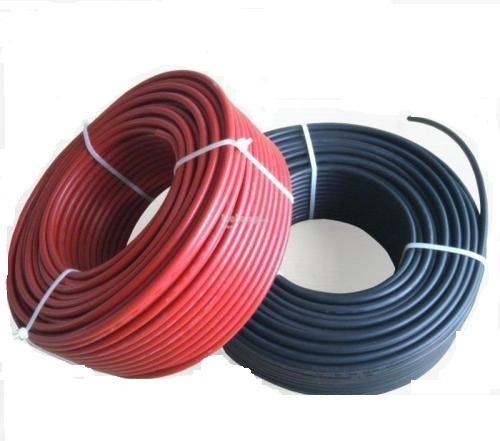

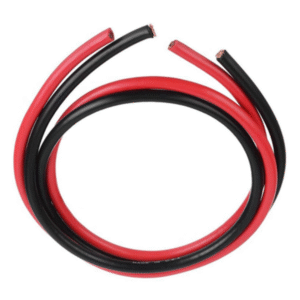

Durable, flexible solar PV cable for rooftops and ground-mounts. This 100 m roll uses tinned copper conductors with cross-linked XLPO insulation and sheath for long outdoor life, easy pulling and reliable terminations. Available in Black or Red to maintain polarity across string runs.
What’s included
• 1 × 100 m roll of H1Z2Z2-K solar DC cable (colour and size selected)
• Manufacturer spec/CoC on request
Key features
• 1.5 kV DC system rating (H1Z2Z2-K / IEC 62930 class)
• XLPO insulation & sheath: UV/ozone resistant, halogen-free, flame retardant (IEC 60332-1)
• Fine-strand tinned copper (Class 5) for low resistance and corrosion resistance
• −40 °C to +90 °C continuous service temp; 120 °C 5 s short-circuit
• Outdoor-ready: abrasion-resistant, oil-resistant, weather-resistant
Technical specs (summary)
• Standard: EN 50618 / IEC 62930 (H1Z2Z2-K)
• Rated voltage: 1.5 kV DC (U0/U = 1.0/1.0 kV AC)
• Conductor: Class 5 tinned copper
• Insulation/Sheath: Cross-linked polyolefin (XLPO), halogen-free, low smoke
• Temperature: −40…+90 °C (operating); +120 °C (short-circuit 5 s)
• Min bend radius: 4×OD (fixed) / 6×OD (flexing) — brand dependent
• Typical OD (approx): 4mm² ≈ 5.5–6.0 mm; 6mm² ≈ 6.1–6.8 mm
• Colour options: Black or Red
Typical uses
• PV module strings (series/parallel), homeruns to combiner boxes
• DC runs from combiners to DC isolator / inverter PV inputs
• Not for AC circuits; use per design and local code
How to order
• Sold as a 100 m roll. Select Colour (Black/Red) and Conductor Size (4mm²/6mm²).
• Need cut-to-length or 10 mm²? Contact us for a custom listing.
Not included
• MC4/compatible connectors, lugs/glands, trunking, labels, installation & COC/SSEG paperwork
Installation & compliance (South Africa)
• Install to SANS 10142-1 and PV best practice by a qualified person.
• Size conductors for current, voltage drop and fault levels; respect Voc at minimum site temperature.
