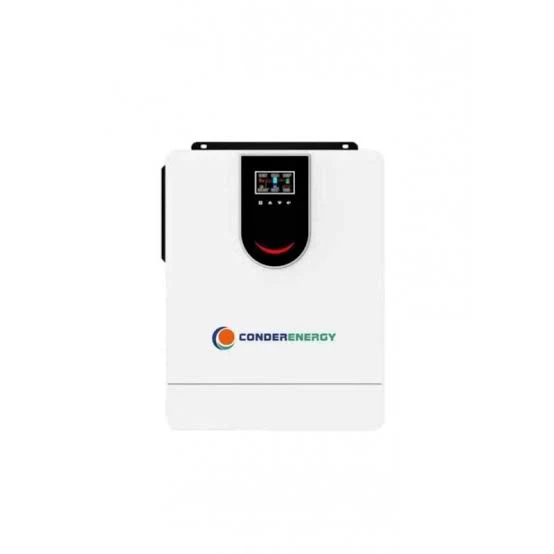

Built for reliable backup and daily solar use, the 10.2kVA ConderEnergy Hybrid MPPT Inverter (48V) combines inverter, solar charger and AC charger in one unit. It features dual MPPT PV inputs for flexible array design, a high 500Vdc PV open-circuit limit, and two load outputs to separate essential and non-essential circuits. Pure sine wave output safeguards sensitive electronics, while the LCD lets you configure charge currents, source priority and battery parameters.
What’s included
• 1 × 10.2kVA/10.2kW hybrid inverter (48V)
• 1 × User manual
• (Wi-Fi/monitoring dongle not included)
Key features
• Hybrid on/off-grid operation with inverter + MPPT + AC charger
• Dual MPPT trackers with wide PV window (90–450Vdc)
• Max PV array open-circuit voltage: 500Vdc
• Two load outputs: main up to 10.2kW, secondary up to 3.4kW
• Pure sine wave output; overload/over-temp/short-circuit protection
• User-configurable charge current, input priority, and voltage windows
• Cold-start function; auto-restart on AC recovery
Technical specs (summary)
• Rated power: 10.2kW (10.2kVA @ PF=1)
• Battery system: 48V (LiFePO₄/Lithium, AGM, Lead-acid supported via configurable settings)
• PV MPPT voltage range: 90–450Vdc
• Max PV Voc: 500Vdc
• Grid/AC output: 220/230/240Vac; grid voltage window 195–253Vac; 50/60Hz
• Max DC→AC efficiency: 97%
• Dual load outputs: Main 10.2kW; Secondary 3.4kW
• Dimensions/weight: 555 × 405 × 135 mm; 14.5 kg
Compatibility
• Works with 48V battery banks (lithium or lead-acid; set charge/float/absorb per battery spec)
• PV strings sized to stay within 90–450Vdc MPPT and ≤500Vdc Voc at coldest site temps
• Use a qualified installer for DB/isolators, breakers, cabling and earthing per SANS
Not included (plan for these)
• External DC/AC isolators, DC fusing/breakers, combiner/DB hardware
• AC/DC cabling, trunking, lugs and labelling
• Monitoring/Wi-Fi dongle (optional accessory)
• Installation, commissioning, COC and SSEG paperwork
Installation & compliance (South Africa)
• High-voltage PV input—qualified installer required with appropriate PPE
• Commission with correct battery chemistry settings and PV string design
• Issue COC and follow local SSEG rules where applicable
Logistics (SA)
• Collection ready 3 hours after payment (business hours)
• Same-day nationwide dispatch with same-day shipping note
• Palletised/secure transport recommended
