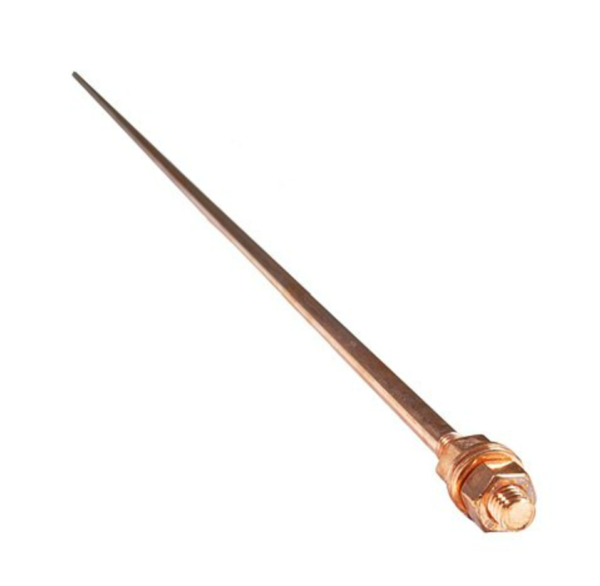

1.2M EARTH SPIKE

Key Features

• Length & Diameter
  • 1.2 m total length for deep soil anchoring
  • 10 mm shaft diameter for optimal balance of strength and ease of installation
• Material & Coating
  • High‑strength galvanized steel core for mechanical durability
  • Copper cladding for superior conductivity and corrosion resistance
• Connection Hardware
  • Includes an earth‑clamp assembly with double nut and washer
  • Clamp opening accommodates 12–16 mm conductor sizes
• Compliance & Safety
  • Meets industry standards for grounding and earthing
  • Suitable for solar PV arrays, lightning protection systems, electric fences, and general electrical installations

Benefits

• Enhanced Grounding Performance
  Achieves low soil resistance for effective fault‑current dissipation, improving safety and equipment longevity.
• Long‑Term Durability
  Copper cladding and galvanization protect against rust and electrochemical corrosion in both dry and wet soils.
• Quick & Secure Installation
  Pre‑fitted clamp and standard nut/washer assembly allow for rapid deployment with minimal tools.
• Cost‑Effective Solution
  Quality materials and simple design deliver long‑term value with minimal maintenance.

Technical Specifications

Typical Applications

• Solar PV grounding for module frames and mounting structures
• Electric fencing as the primary ground stake for energizer return paths
• Lightning protection systems as a down‑conductor termination point
• General earthing for sub‑distribution boards and transformer-neutral systems

Installation Guide

1. Select Location
   Choose a spot with moist, conductive soil away from buried utilities.
2. Drive the Rod
   Use a hammer or ground‑rod driver to drive the spike vertically until only 10–20 cm remains above ground.
3. Attach Clamp
   Position the earth‑clamp over the exposed section and tighten the double nut and washer.
4. Connect Cable
   Insert the earth conductor (12–16 mm) into the clamp and torque to the recommended specification.
5. Test Resistance
   Measure earth resistance—ideally below 10 Ω—and add additional rods in series or parallel if needed.

What’s in the Box

• 1 × 1.2 m Copper‑Clad Earth Spike
• 1 × Earth‑Clamp Assembly (double nut & washer)
• 1 × Installation Instruction Leaflet

Contact

For bulk pricing and enquiries, please reach out to our sales team.
